FLR1 Flexible Link Roller

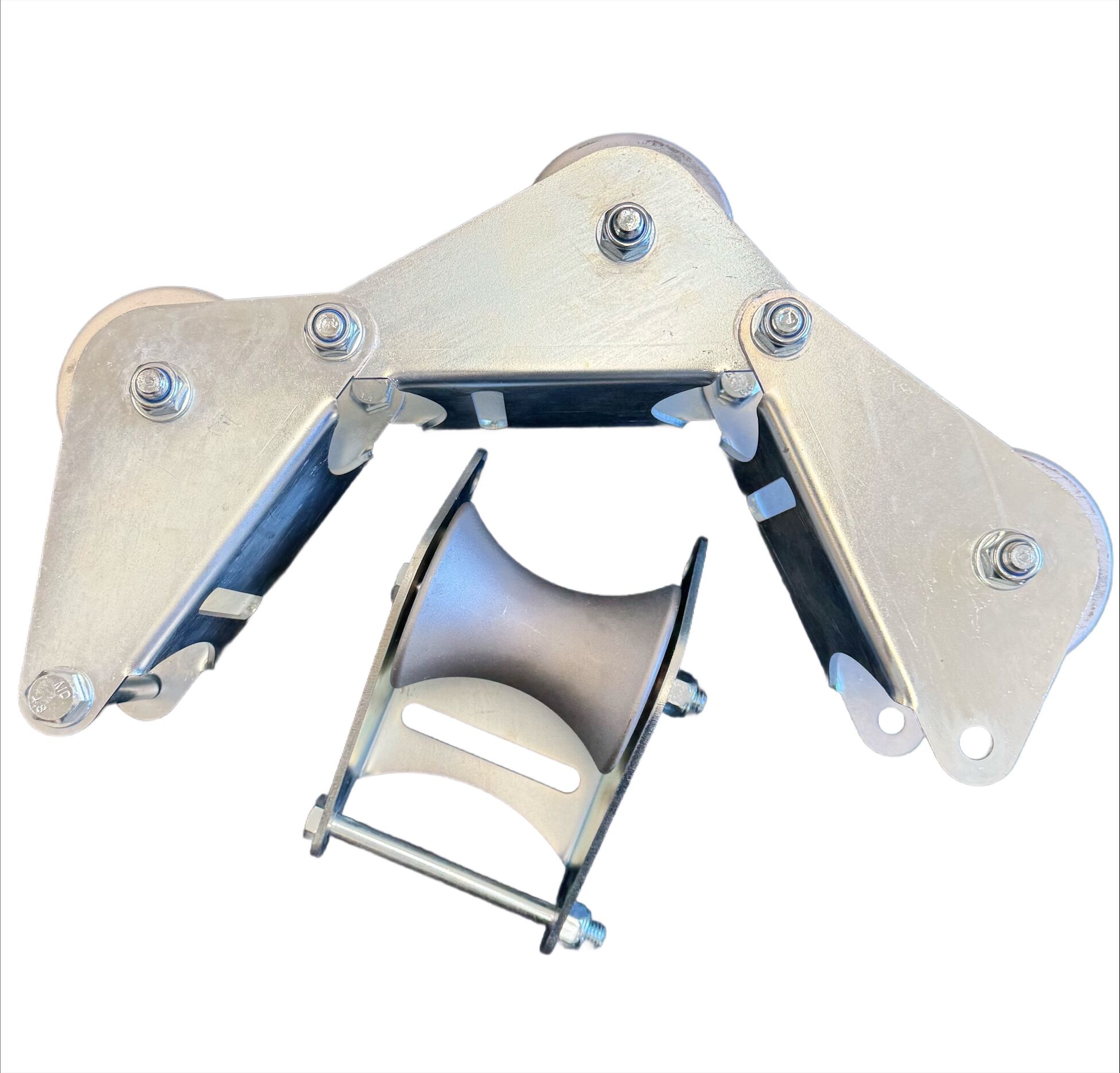

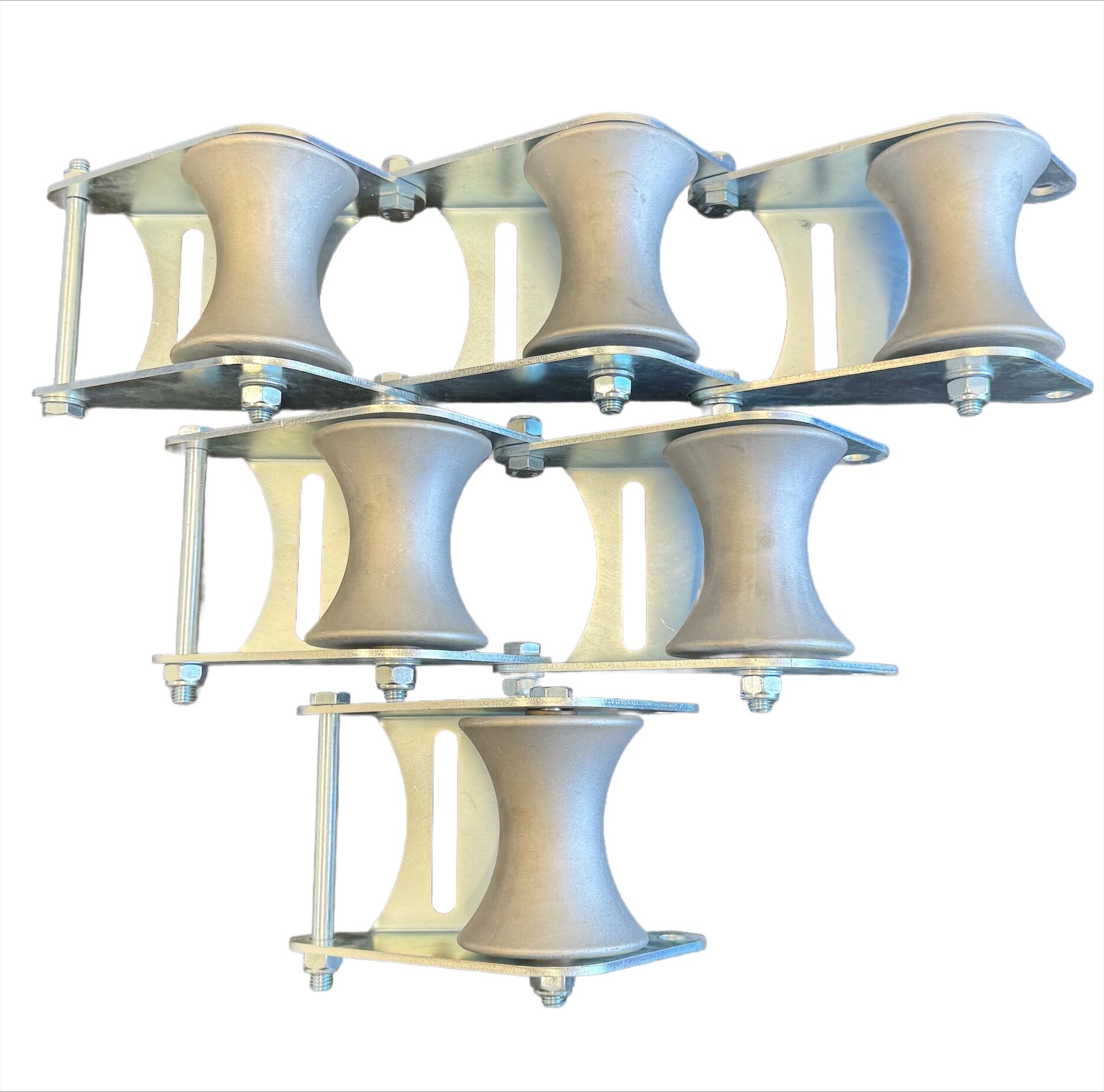

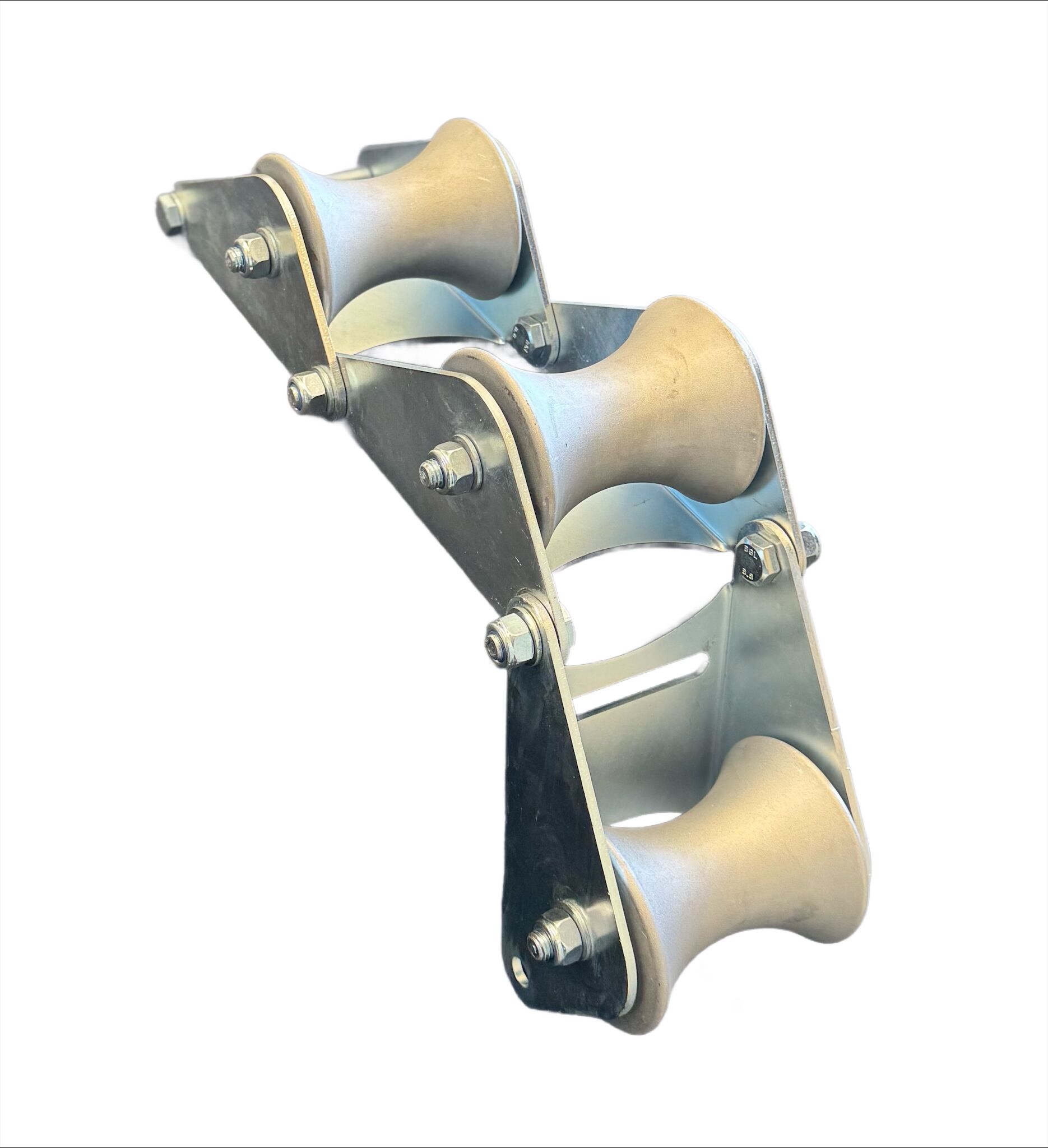

The FLR1 is a heavy-duty guiding cable roller for use in most cable laying applications and is suitable for cables up to 90mm. These can be used singularly or linked together with additional rollers (FLR1L) to form a chain. It can be used in a variety of applications and various bend/lead-in configurations, in a straight line, over a pit edge, around a post, over uneven ground or peaks, effectively the Flexible Link Roller chain will go from 0-180 degrees and wrap around a post as small as 130mm square or round

Download Spec Sheet

FLR1 SPEC SHEET



Description

  • Heavy duty pressed steel construction with zinc plated finish
  • 90mm diameter large waisted solid aluminium roller (this can be substituted for solid steel for the most arduous of applications)
  • Oil impregnated maintenance free bushes fitted
  • Useful carry handle
  • Additional link code FLR1L which includes fixings
  • Size: 21cm long x 12cm wide x 10cm high
  • Weight 2.25Kg
