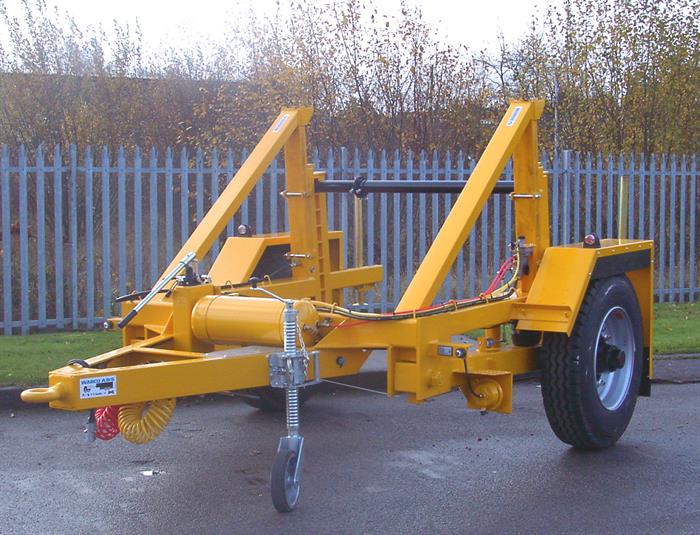

Cable Drum Trailer (Model Number: 0105_CDT5.25)

5250Kg Payload EEC Cable Drum Trailer, our largest standard EEC model (although we have the scope to build larger EEC units if required) fitted with ABS Air Braking Systems

Description

Cable Drum Trailer Specification

Gross Weight 6600Kg
Unladen Weight 1350Kg
Drawbar Load 300Kg
Axle Weight 6300Kg
Drawbar Height 570mm
Overall Length 4200mm
Overall Width 2550mm
Coupling Type 40mm Din or 76mm Nato
Spindle Diameter 76mm Tubular c/w Locking Collars
Tyres 11R22.5
Brakes 2 Line Air Brakes c/w Load Sense and ABS
Lights Road going EEC 24V
Mudguards Fabricated steel
Prop Stands 48mm Sliding type to rear
Jockey Wheel Heavy duty telescopic type
Finish 2 Coat Commercial Standard

Drum Lift

25cc/Stroke Hand Pump operating 2off Single Acting Rams via Flow Divider for a balanced lift.
Once raised, the Cable Drum is mechanically locked in the travelling position
Cable Drum Capacity
Cable Drum Weight 5250Kg
Cable Drum Max Diameter 3100mm
Cable Drum Min Diameter 1350mm
Cable Drum Width 1390mm

In addition to the above, TWS Ltd can design and manufacture Cable Drum Trailers to suit you specific Drum sizes and weights upto a maximum of 50,000Kg, contact our sales team for further information and a quotation

All dimensions are a guide and are subject to manufacturing tolerances
