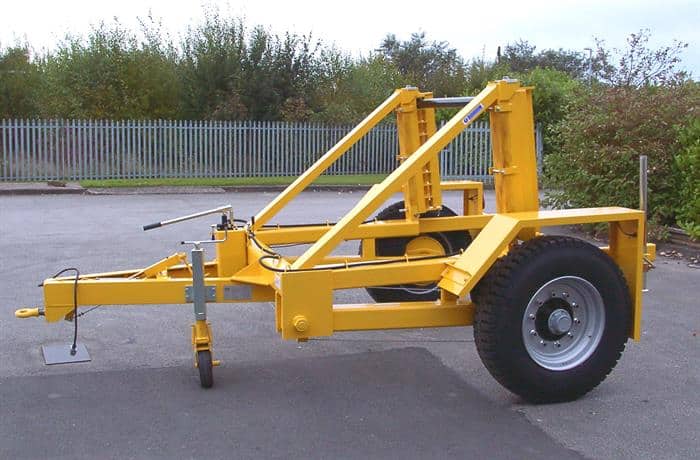

Cable Drum Trailer (Model Number: 0204_CDT10.0S)

10,000Kg Payload Site Only or Middle East/Non-EEC spec Cable Drum Trailer. This is the largest of our single axle trailers and can also be supplied in a “knock down” form as above

Description

Cable Drum Trailer Specification

Gross Weight 12,500Kg
Unladen Weight 2,500Kg
Drawbar Load 1,000Kg Max
Axle Weight 11,500Kg
Drawbar Height 600mm
Overall Length 4400mm
Overall Width 3280mm
Coupling Type 50mm eye
Spindle Diameter 89mm Tubular c/w Locking Collars
Tyres 12.00 x 20
Brakes Overrun Non Auto Reverse c/w Park Brake (Air Brakes Optional)
Lights Road going 12V (Rear Stop, Tail and Indicators Only)
Mudguards Fabricated
Prop Stands 48mm Sliding type to rear
Jockey Wheel Heavy duty telescopic type
Speed 15kmh
Finish 2 Coat Commercial Standard

Drum Lift

25cc/Stroke Hand Pump operating 2off Single Acting Rams via Flow Divider for a balanced lift.
Once raised, the Cable Drum is mechanically locked in the travelling position

Cable Drum Capacity

Cable Drum Weight 10,000Kg
Cable Drum Max Diameter 3450mm*
Cable Drum Min Diameter 1750mm*
Cable Drum Width 2000mm *

In addition to the above, TWS Ltd can design and manufacture Cable Drum Trailers to suit you specific Drum sizes and weights upto a maximum of 50,000Kg, contact our sales team for further information and a quotation

* As a manufacturer, trailers can be modified to suit individual drum sizes

All dimensions are a guide and are subject to manufacturing tolerances
