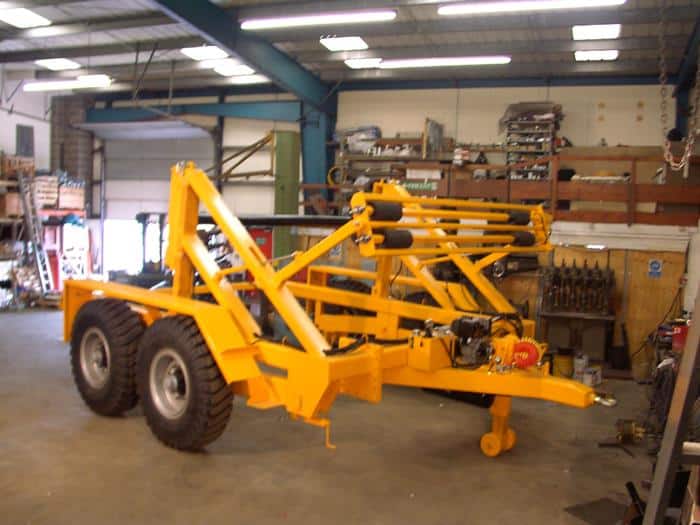

Cable Drum Trailer (Model Number: 0206_CDT20.0S)

20,000Kg Payload Site Only or Middle East/Non-EEC spec Cable Drum Trailer

Description

Cable Drum Trailer Specification

Gross Weight 24,000Kg
Unladen Weight 4,000Kg
Drawbar Load 1,000Kg Max
Axle Weight 11,500Kg
Drawbar Height 800mm
Overall Length 5600mm
Overall Width 3700mm
Coupling Type 50mm eye
Spindle Diameter 127mm Tubular c/w Locking Collars
Tyres 12.00 x 20
Brakes 2 Line Air Brakes
Lights Road going 12V (Rear Stop, Tail and Indicators Only)
Mudguards Fabricated
Jockey Wheel Heavy duty telescopic type
Speed 15kmh
Finish 2 Coat Commercial Standard

Drum Lift

25cc/Stroke Hand Pump operating 2off Single Acting Rams* via Flow Divider for a balanced lift. Once raised, the Cable Drum is mechanically locked in the travelling position

Cable Drum Capacity

Cable Drum Weight 20,000Kg
Cable Drum Max Diameter 4800mm**
Cable Drum Min Diameter 2700mm**
Cable Drum Width 2400mm **In addition to the above, TWS Ltd can design and manufacture Cable Drum Trailers to suit you specific Drum sizes and weights upto a maximum of 50,000Kg, contact our sales team for further information and a quotation

Double acting rams can be fitted as an option for powered lowering

** As a manufacturer, trailers can be modified to suit individual drum sizes

All dimensions are a guide and are subject to manufacturing tolerances
