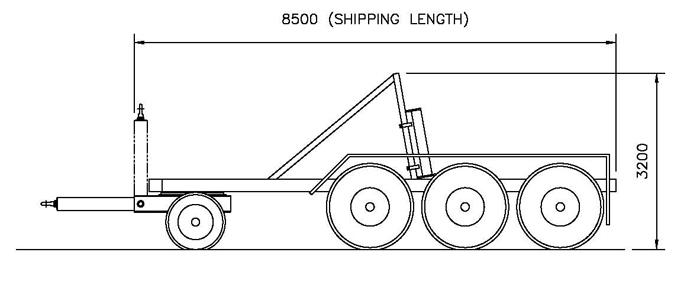

Cable Drum Trailer (Model Number: CDT 50.00)

50,000Kg Payload Site Only or Middle East/Non-EEC spec Cable Drum Trailer, the largest of our tandem axle range of trailers


Cable Drum Trailer Specification

Gross Weight 58,000Kg
Unladen Weight 8,000Kg

Axle Weight 14,000Kg

Overall Length 9500mm
Overall Width 4600mm
Coupling Type 76mm eye
Spindle Diameter 152mm Tubular c/w Locking Collars
Brakes 2 Line Air Brakes
Lights Road going 12V (Rear Stop, Tail and Indicators Only)
Mudguards Fabricated
Jockey Wheel Heavy duty telescopic type
Speed 10kmh
Finish 2 Coat Commercial Standard

Drum Lift

25cc/Stroke Hand Pump operating 2off Single Acting Rams* via Flow Divider for a balanced lift. Once raised, the Cable Drum is mechanically locked in the travelling position

Cable Drum Capacity

Cable Drum Weight 30,000Kg
Cable Drum Max Diameter 5000mm**
Cable Drum Min Diameter 3000mm**
Cable Drum Width 3000mm **

In addition to the above, TWS Ltd can design and manufacture Cable Drum Trailers to suit you specific Drum sizes and weights upto a maximum of 50,000Kg, contact our sales team for further information and a quotation

Double acting rams can be fitted as an option for powered lowering

** As a manufacturer, trailers can be modified to suit individual drum sizes

All dimensions are a guide and are subject to manufacturing tolerances
