QR3 Quadrant Roller

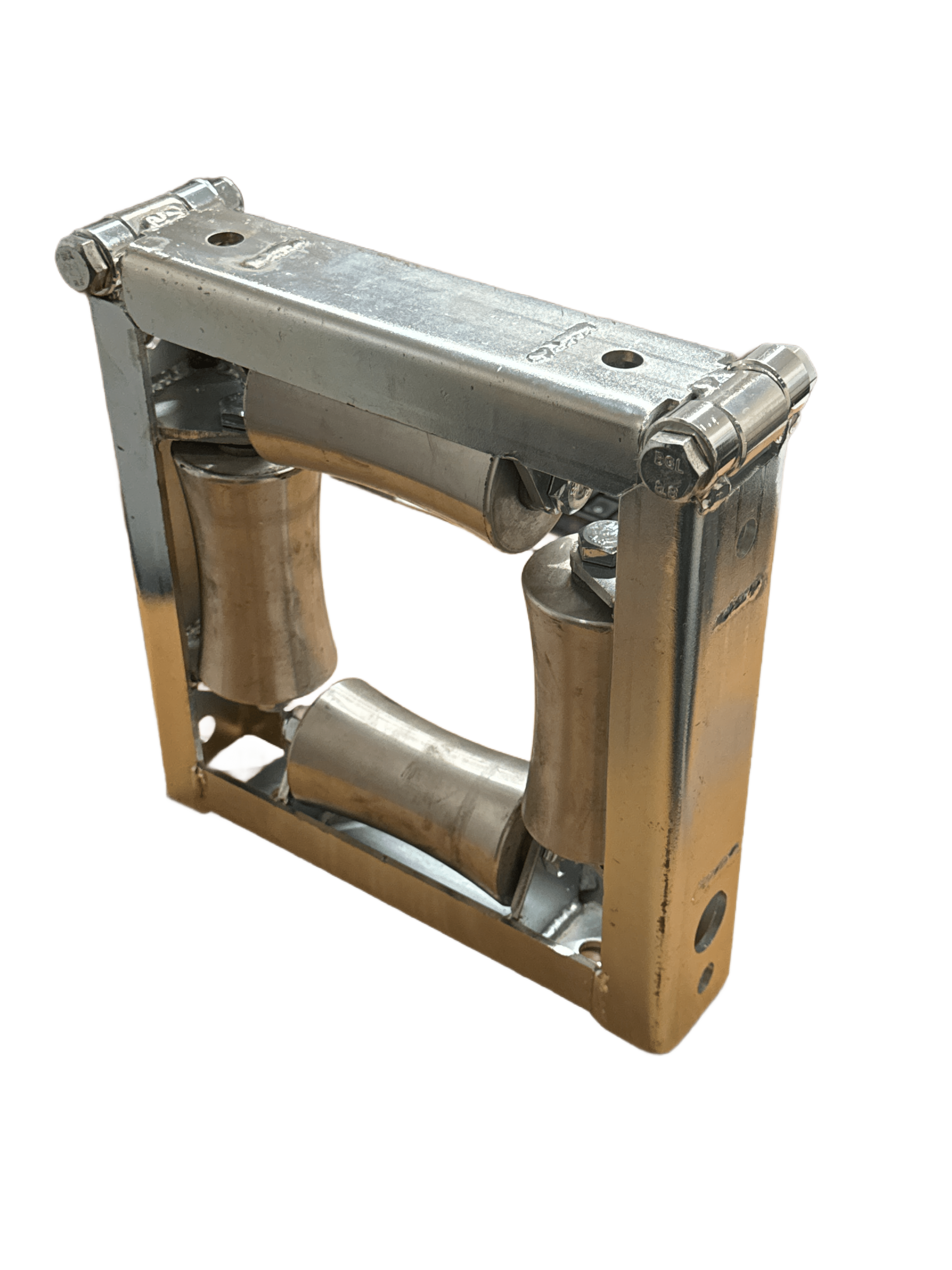

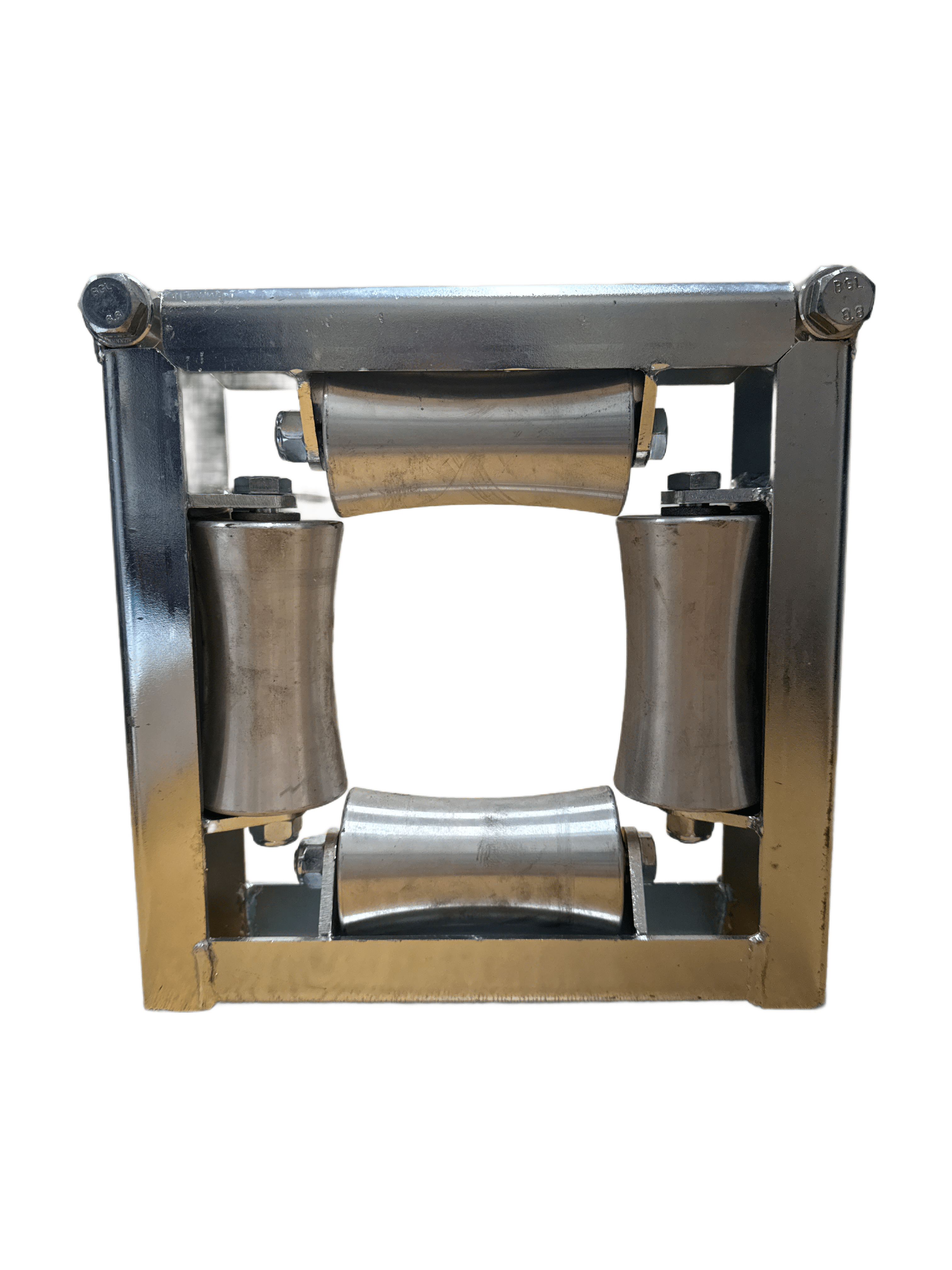

The QR3 quadrant roller can be bolted to floors, beams, trays, racks or fitted to a free standing frame. Fitted with a hinged/removable gate, cable can easily be extracted. The cable roller is suitable for cables up to 110mm diameter (aperture 115mm) with a weight capacity of 150Kg

Download Spec Sheet

QR3 SPEC SHEET

Categories: Cable Rollers, Quadrant Rollers Tags: cable pulling, Clamping Roller, Hanging Rollers

Description
Reviews (0)

Description

• Heavy duty steel construction
• 4off solid aluminium rollers with 12mm solid shaft
• Rollers suitable to accept wire bonds on bends

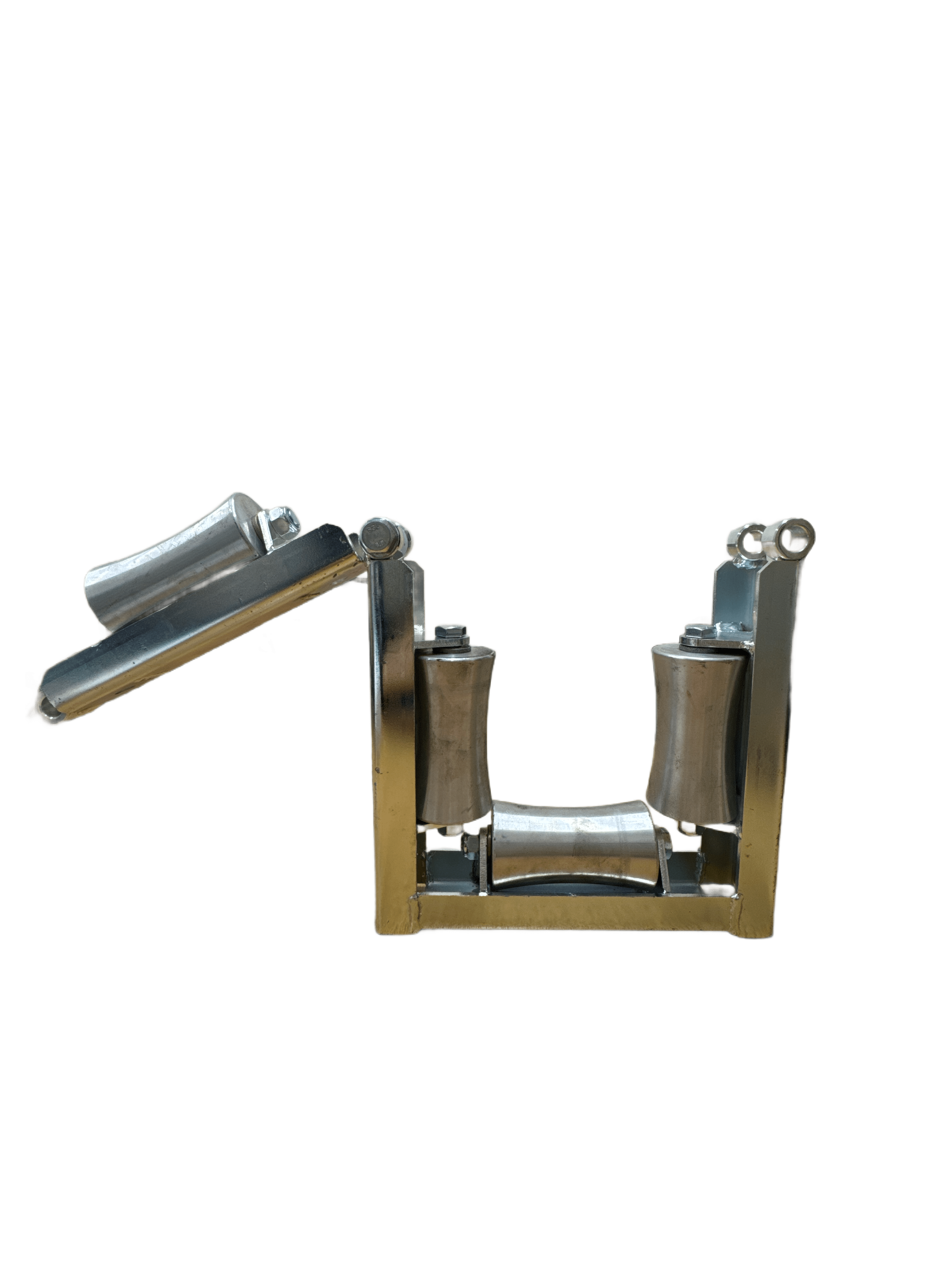

• Hinged gate for cable extraction
• Oilite maintenance free bearings fitted
• Zinc plated finish
• Supplied with mounting holes
• Can be supplied with an optional stand
• Size: 28cm long x 7cm wide x 28cm high
• Weight: 7.25Kg

Reviews

There are no reviews yet.

Be the first to review “QR3 Quadrant Roller”
