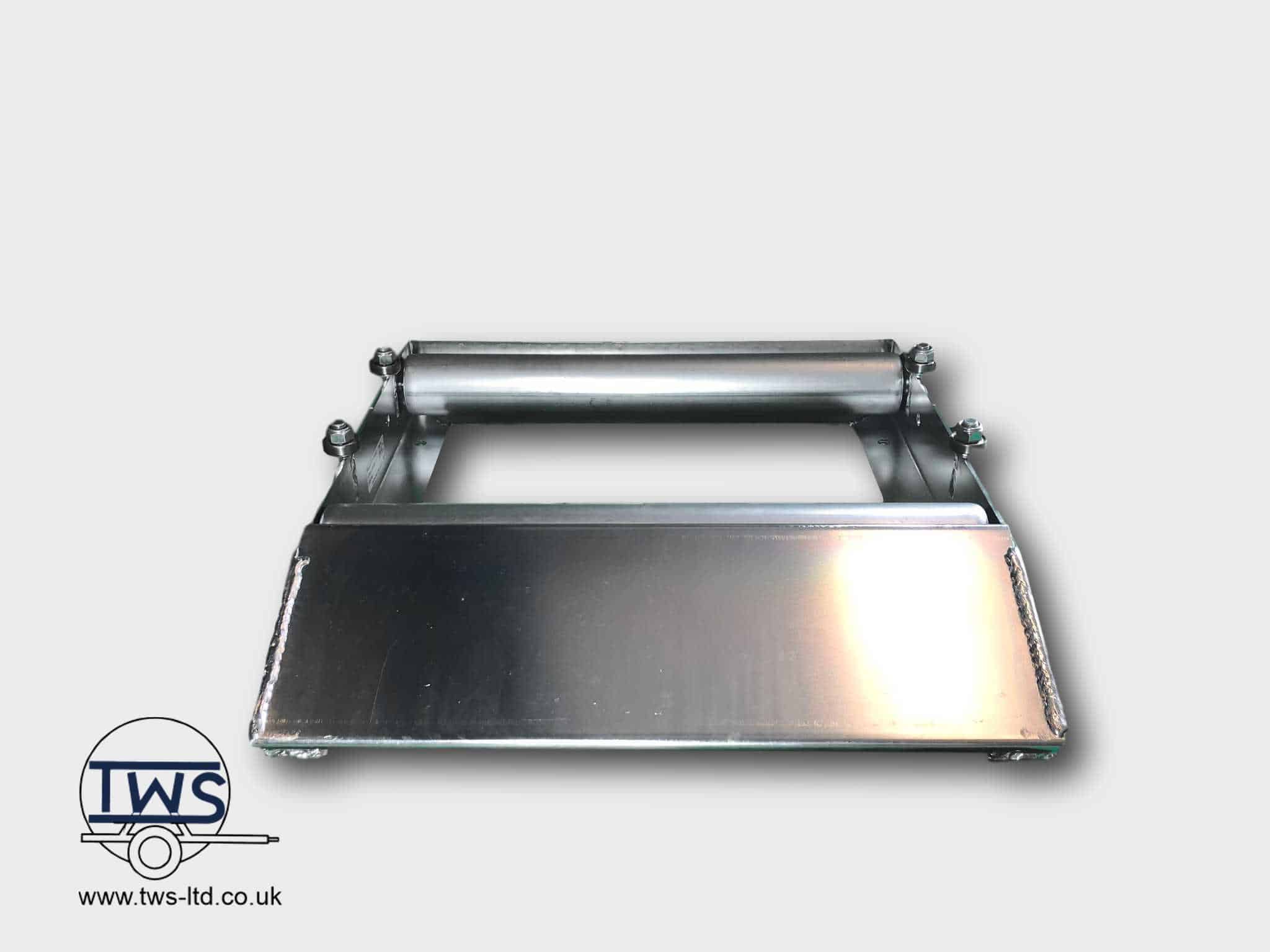

Compact Roll on Cable Drum Rotator (Model Number: DR1C)

The DR1C Compact light weight Cable Drum Rotator is suitable for a range of Drum diameters upto 800mm.

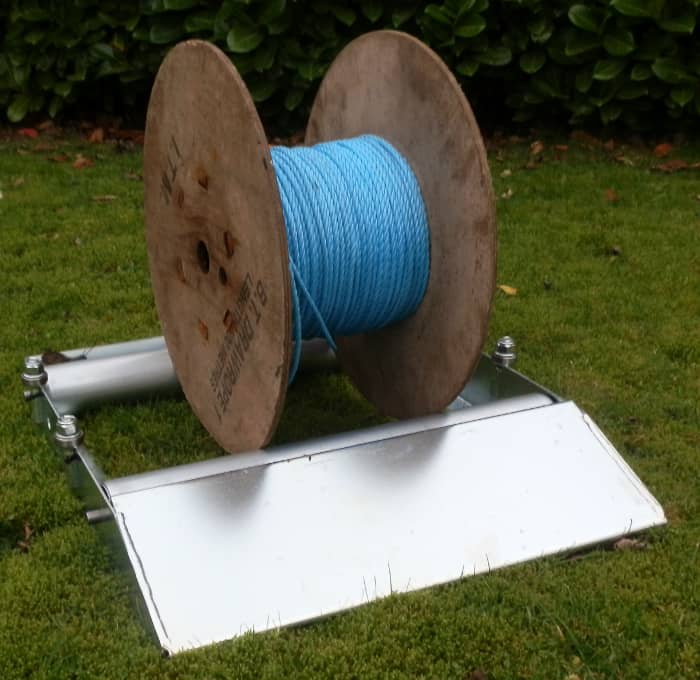

Drums are simply rolled up the ramp onto the adjustable rollers to allow it to spin freely. It’s a new addition to our range and is used where space is limited.

Download Spec Sheet
DR1C Roll On Cable Drum Rotator – TWS Ltd



Description

Pressed steel construction
60mm Diameter Zinc plated rollers
Sealed roller bearings fitted
Has spring loaded shafts for easy replacement/adjustment
Capacity 200Kg
Max drum size 800mm
Min Drum Size 300mm
Drum Width 450mm
Zinc plated finish
Base Size 51cms Long x 52cms Wide
Weight 10.5 Kgs

* As an option, unit can be fitted with rubber feet to prevent slippage and damage on sensitive flooring

Rotators can be made any size to suit your application
