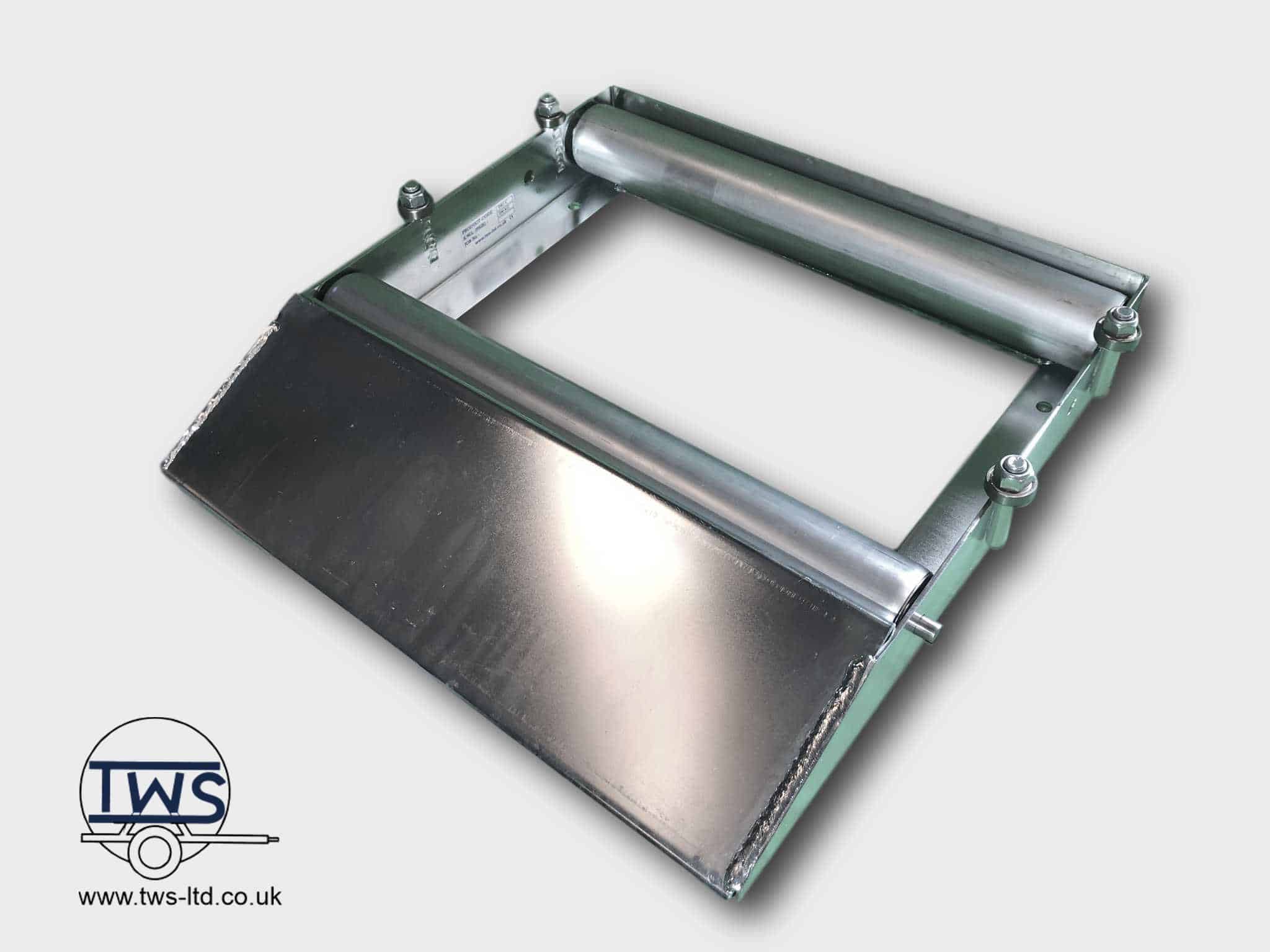

Roll on Cable Drum Rotator (Model Number: DR1)

The recently improved DR1 light weight Cable Drum Rotator is suitable for a range of Drum diameters upto 800mm. Drums are simply rolled up the ramp onto the adjustable rollers to allow it to spin freely.

The drum roller is now suitable for drums of upto 620mm wide and has 4 lateral roller guides (was 2) to help prevent twisting of the drum.

Download Spec Sheet
DR1 Roll On Cable Drum Rotator – TWS Ltd

Category: Cable Drum Rotators and Horizontal Drum Stands

Description
Reviews (0)

Description

• Pressed steel construction
• 60mm Diameter Zinc plated rollers
• Sealed roller bearings fitted
• Has spring loaded shafts for easy replacement/adjustment
• Capacity 200Kg
• Max drum size 800mm
• Min Drum Size 300mm
• Drum Width 620mm
• Zinc plated finish
• Base Size 62cms Long x 65cms Wide
• Weight 14 Kgs

* As an option, unit can be fitted with rubber feet to prevent slippage and damage on sensitive flooring
In addition to the above, TWS Ltd can design and manufacture Drum Handling Equipment including Hydraulic Drum Lifters and Jack Towers to suit you specific Drum sizes and weights upto a maximum of 50,000Kg, contact our sales team for further information and a quotation
