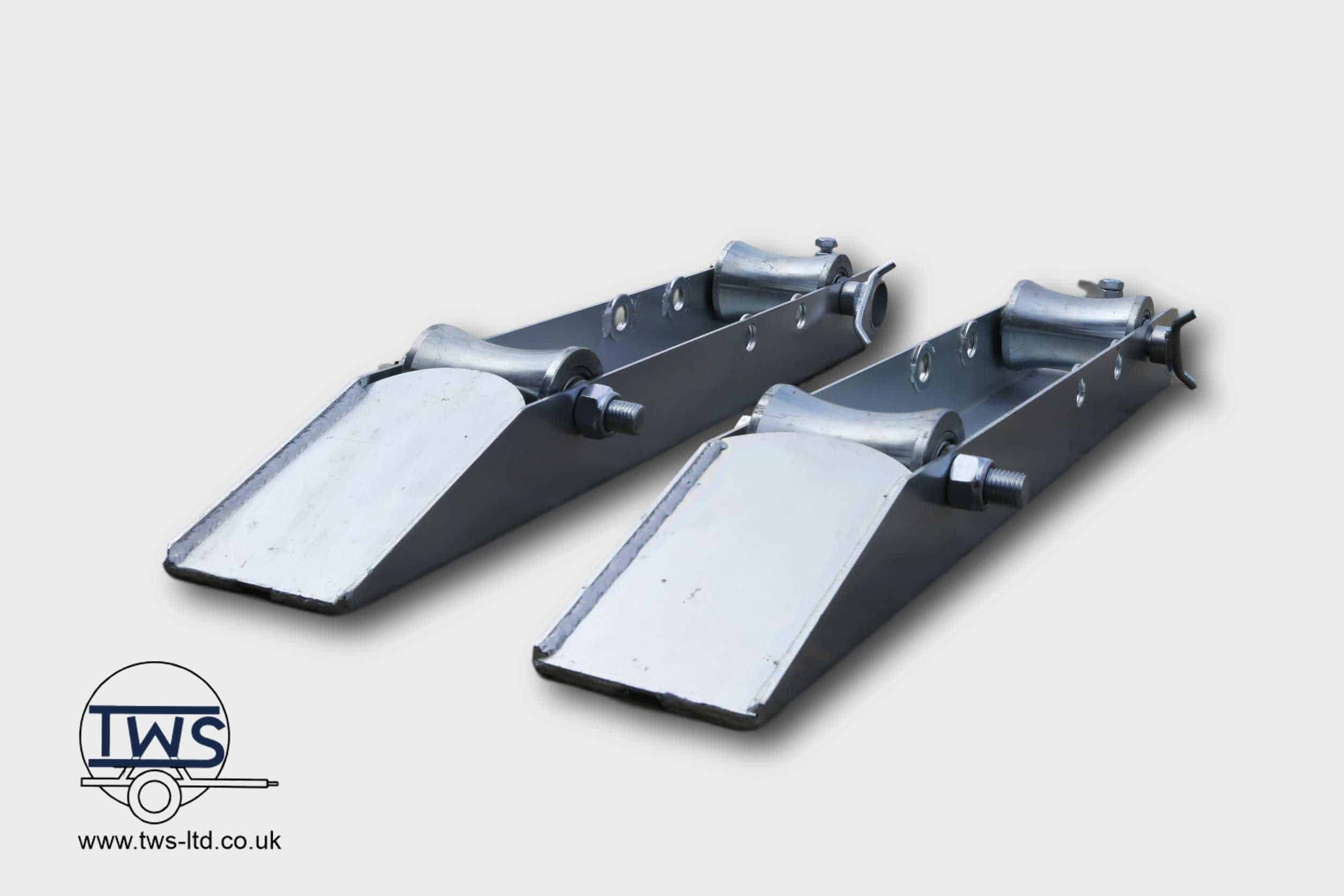

Roll on Cable Drum Rotator (Model Number: DR4)

The DR4 medium duty cable drum rotator is suitable for a range of drum diameters up to 1200mm. Drums are simply rolled up the ramp onto the adjustable rollers to allow it to spin freely.

Download Spec Sheet
DR4 Roll On Cable Drum Rotator – TWS Ltd




• Pressed/rolled steel construction
• 76mm diameter heavy duty zinc plated rollers
• Precision sealed roller bearings fitted
• Capacity 1000Kg
• Min drum size 300mm
• Max drum size 1200mm
• Drum width is infinite
• Facility to link together (link bar sold separately)
• Zinc plated finish
• Size: 77cm long x 16.5cm wide
• Weight: 22Kg/pair

In addition to the above, TWS Ltd can design and manufacture Drum Handling Equipment including Hydraulic Drum Lifters and Jack Towers to suit you specific Drum sizes and weights upto a maximum of 50,000Kg, contact our sales team for further information and a quotation
